Route selected home circuits between grid supply and a compatible Mango Power backup system.

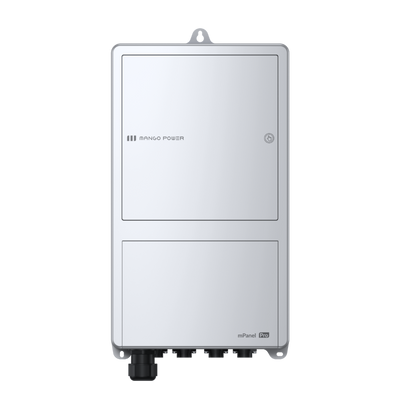

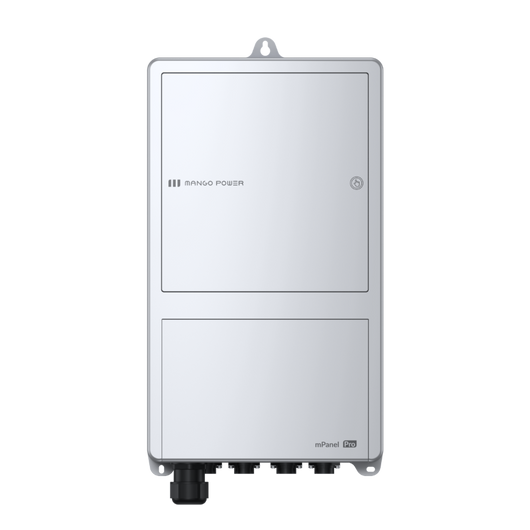

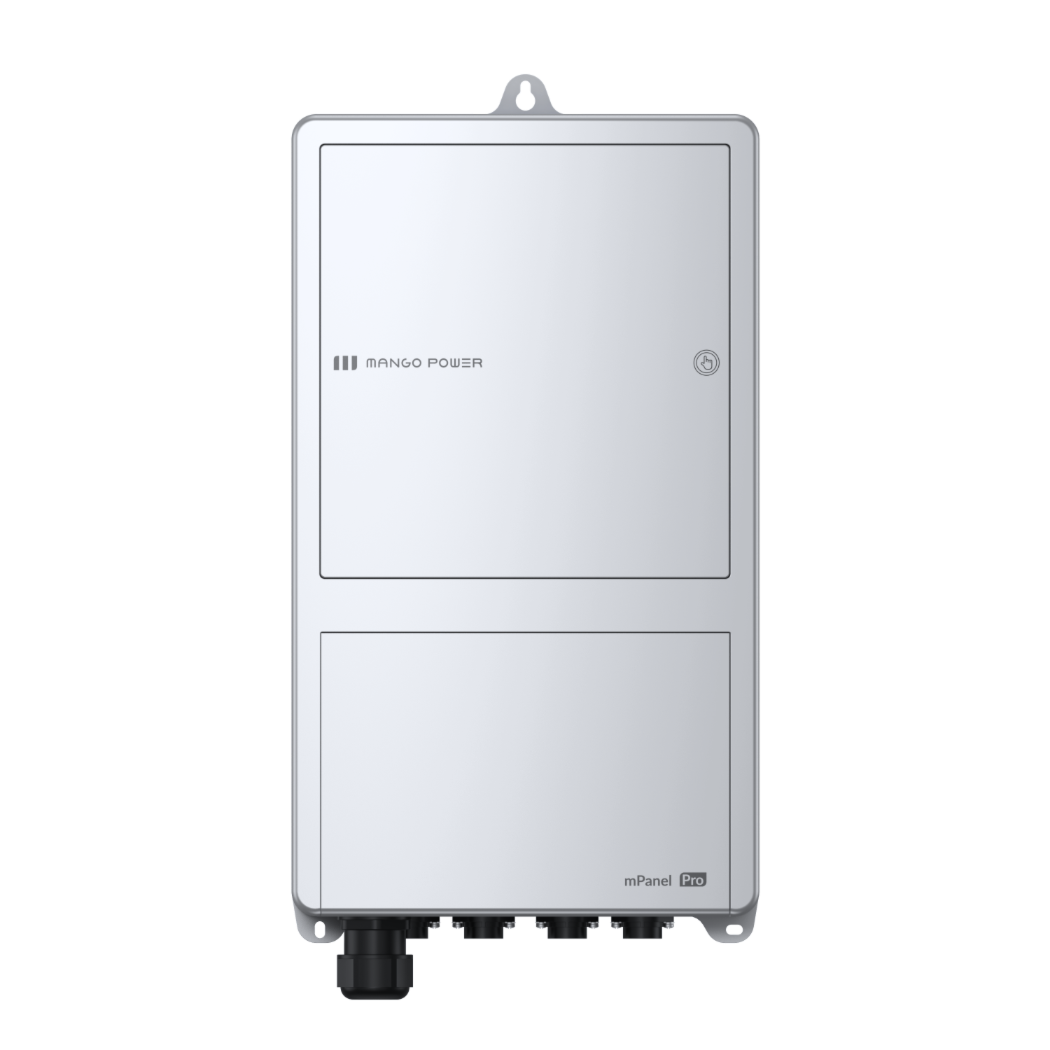

Mango Power mPanel Pro
$749.00
- For Mango Power E or Union
- Supports selected backup circuits
- 120V / 240V mains input
- Professional installation required
Bring backup power to key circuits
A dedicated panel helps organize which loads receive backup supply.
Bring backup power to key circuits
A dedicated panel helps organize which loads receive backup supply.
Choose essential loads
Four load output circuits allow you to plan the devices that matter most.
Grid and backup routing
The panel provides controls for selecting the supply source for supported circuits.
Built for the system
Use with Mango Power E or Union as specified by the manufacturer.
Plan home backup with an electrician
The mPanel Pro is an electrical distribution and switching component. A qualified installer should review loads, circuit protection, wiring and the compatible power-station configuration before installation.
- Features:
-
Four 15A load output circuits
-
120V / 240V mains input
-
Professional wiring and commissioning
-
Fourth feature or benefit
-
Fifth feature or benefit
-
Sixth feature or benefit
Technical specifications
- Mains input
- 120V / 240V, 50A
- Backup input ports
- 2 × 30A
- Output ports
- 2 × 30A
- Load outputs
- 4 × 15A
- Size
- 554 × 280 × 108 mm
- Working temperature
- -10°C to 45°C
- Compatible systems
- Mango Power E and Mango Power Union
- Included cables
- 2 AC input cables, 2 AC output cables, 1 E-Link cable
- Other contents
- mPanel Pro, 3 expansion plugs, 3 self-tapping screws, manual, warranty card
Electrical
Physical
Mango Power E kit
GOOD TO KNOW
Frequently asked questions
Answers about setup, compatibility and everyday use.
Will this back up every circuit in my home?
It is designed for selected circuits. A qualified installer must size the backup plan around the system and your loads.
Does it work with Mango Power E?
Yes. The official E kit includes the mPanel Pro, mounting hardware, manual, warranty card, two AC input cables, two AC output cables and one E-Link cable.
Is installation a do-it-yourself project?
No. Have a qualified electrician review and install grid-connected equipment.
Does the panel automatically switch during an outage?

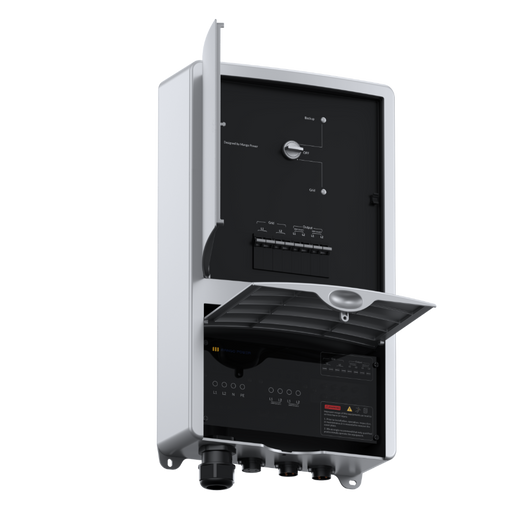

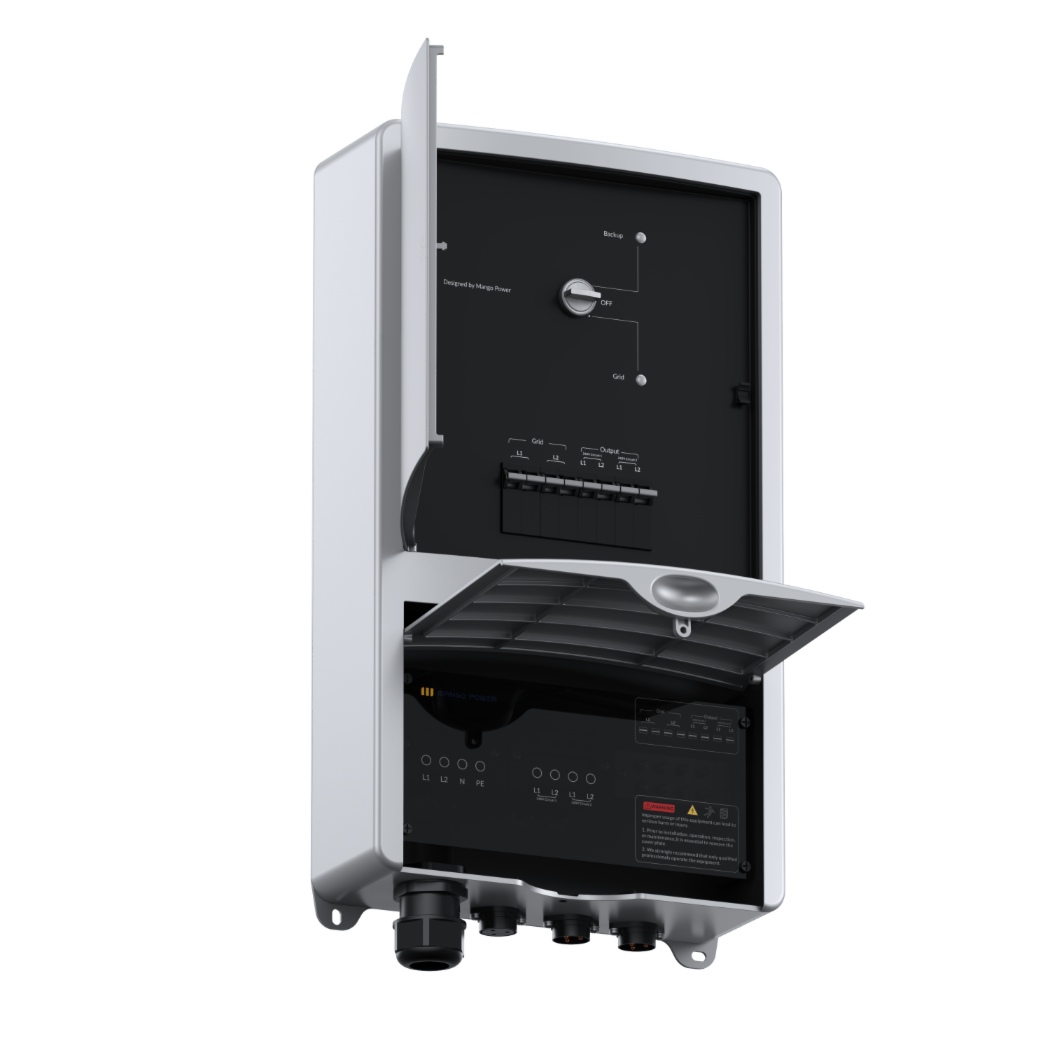

No automatic transfer is stated in the official specifications. Four rotary switches select grid or backup supply for the four output circuits.
